PLA / Esun by Esun
Tested PLA: Esun (by Esun). Color of the filament in test: Yellow. The experiment can be seen in this video: https://youtu.be/L9tNhfxs9BU
Official recommended printing temperatures:
| Tmin | Tmax |
| 190 °C | 220 °C |
| 374 °F | 428 °F |
Test specimens are printed at 210°C (410°F)
Results of the mechanical testing
Testing method is described on this page. In most cases the break load is measured (in kg).
| Test type | Value | Icon |
|---|---|---|
| Tensile (pulling) test | 69.7 kg | 8 |
| Layer adhesion | 12.3 kg | |
| Impact test | - | I |
| Shear stress | - | m |
| Bending | - | |
| Torque (twist) | - | |
| Elasticity test | - |

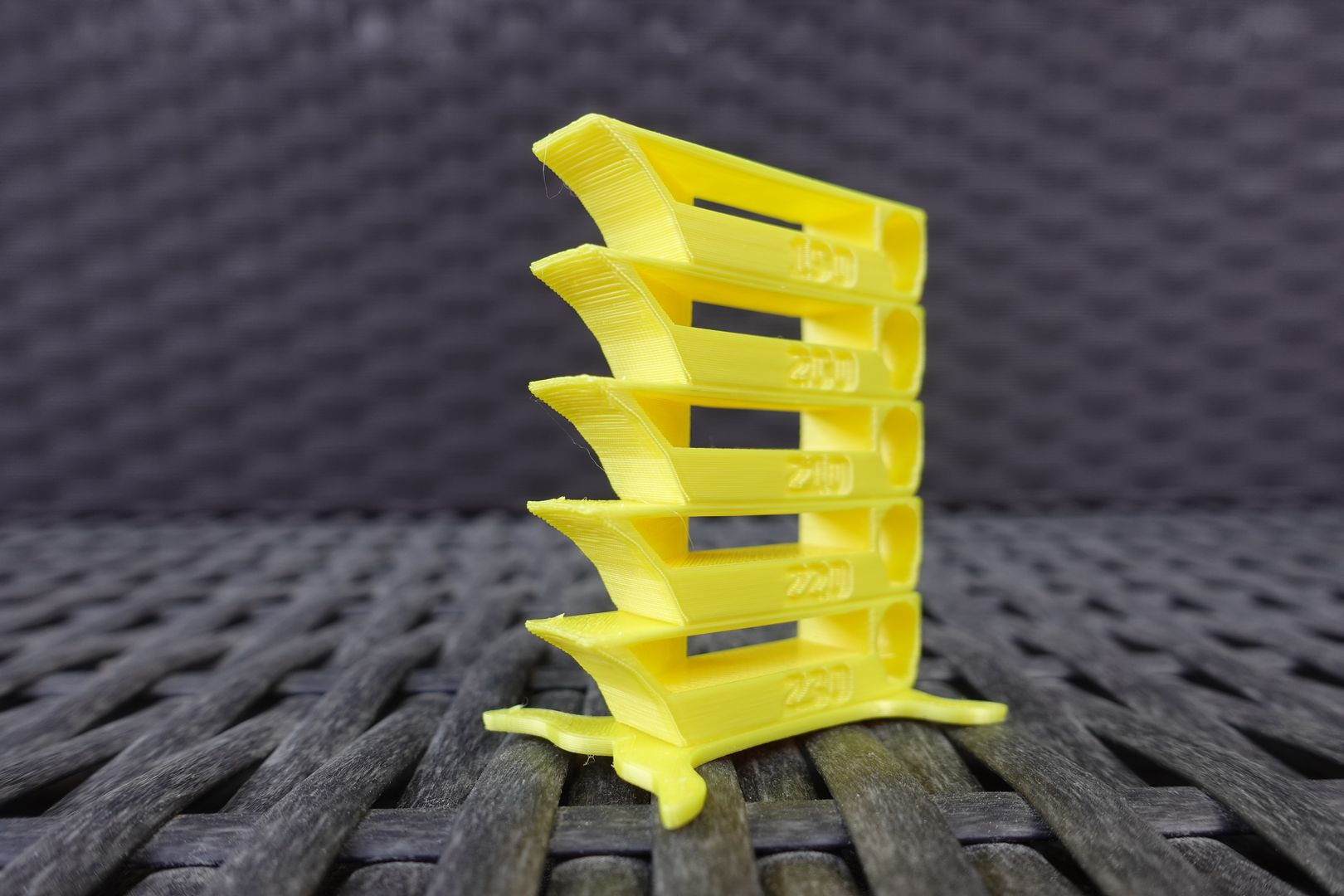

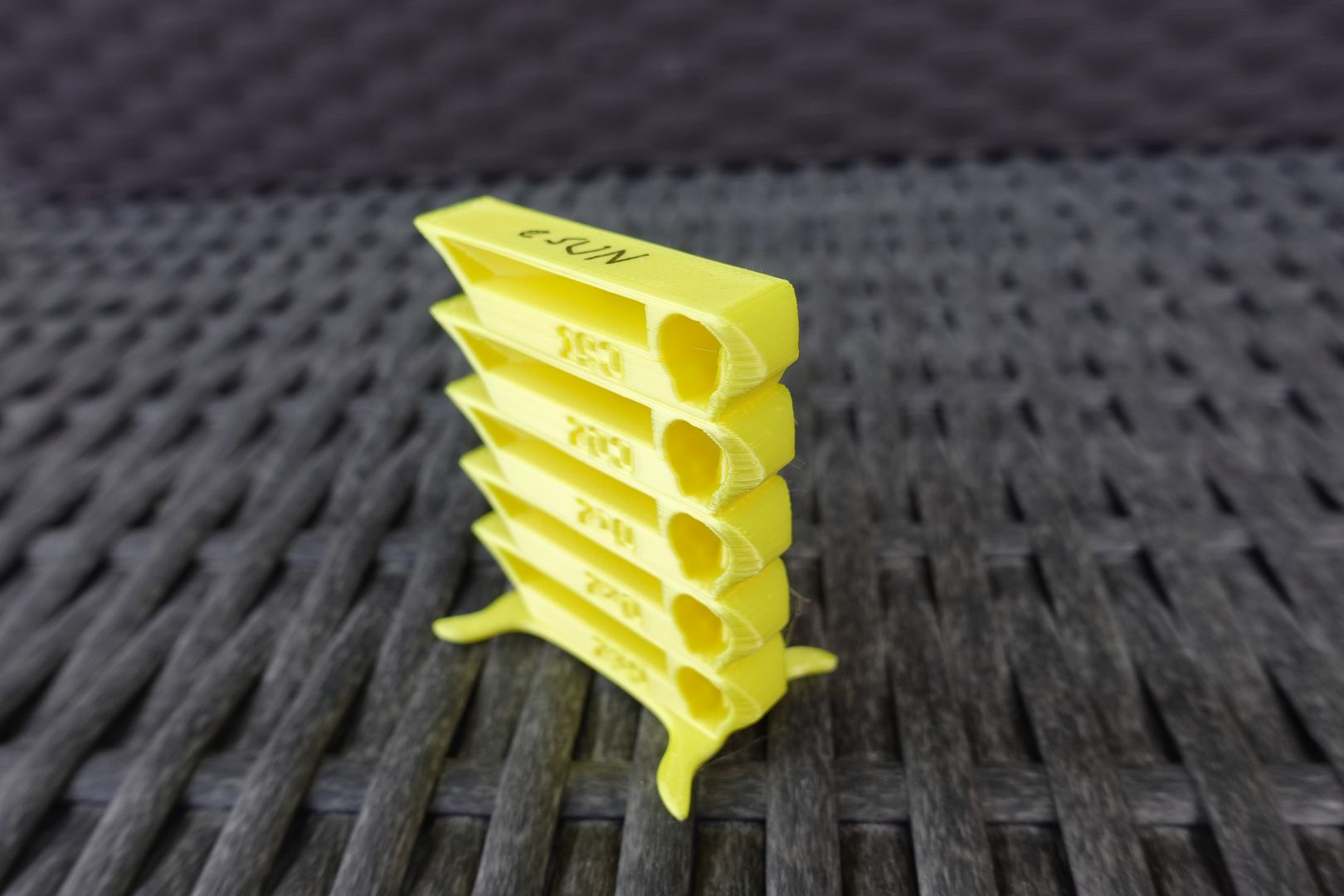

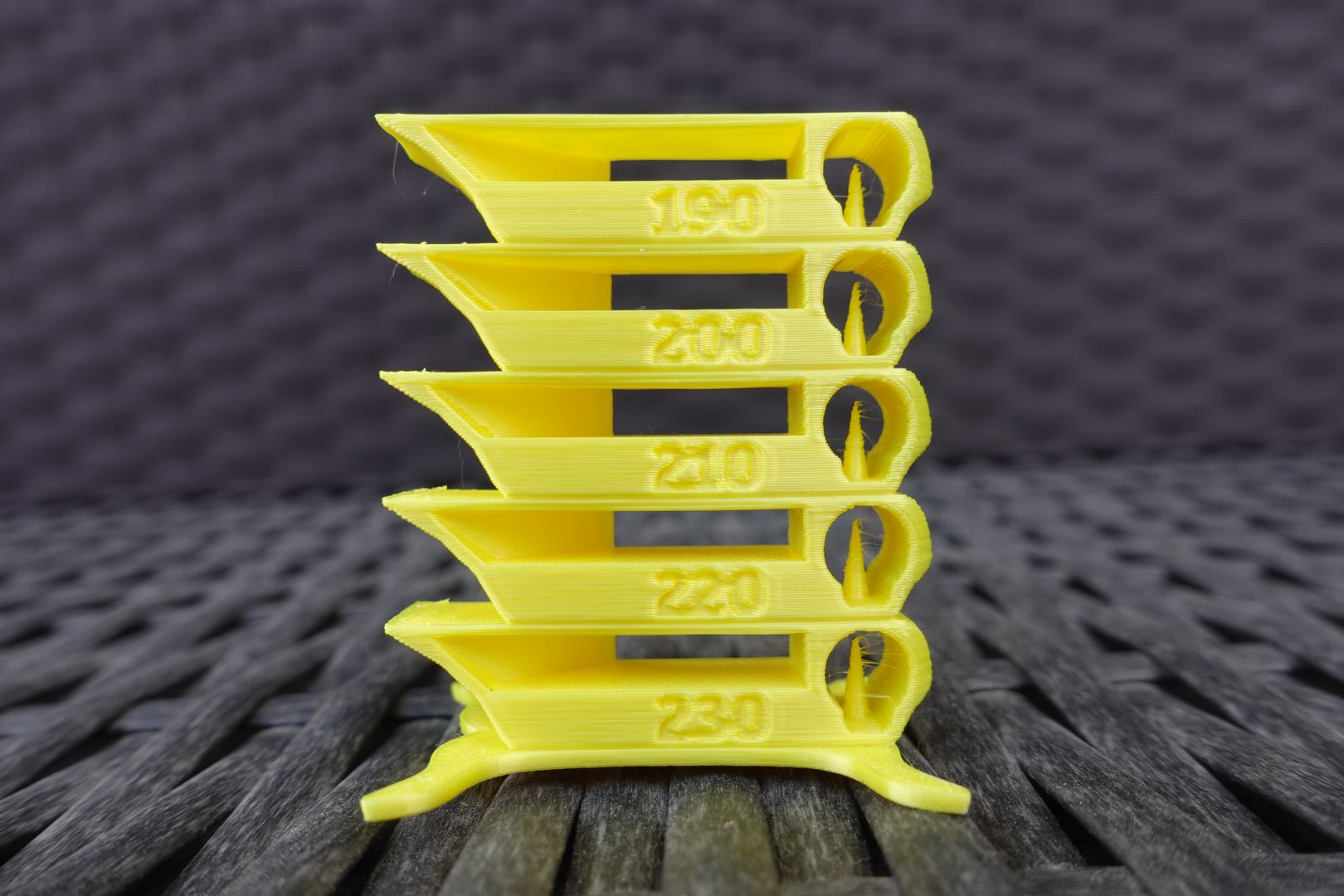

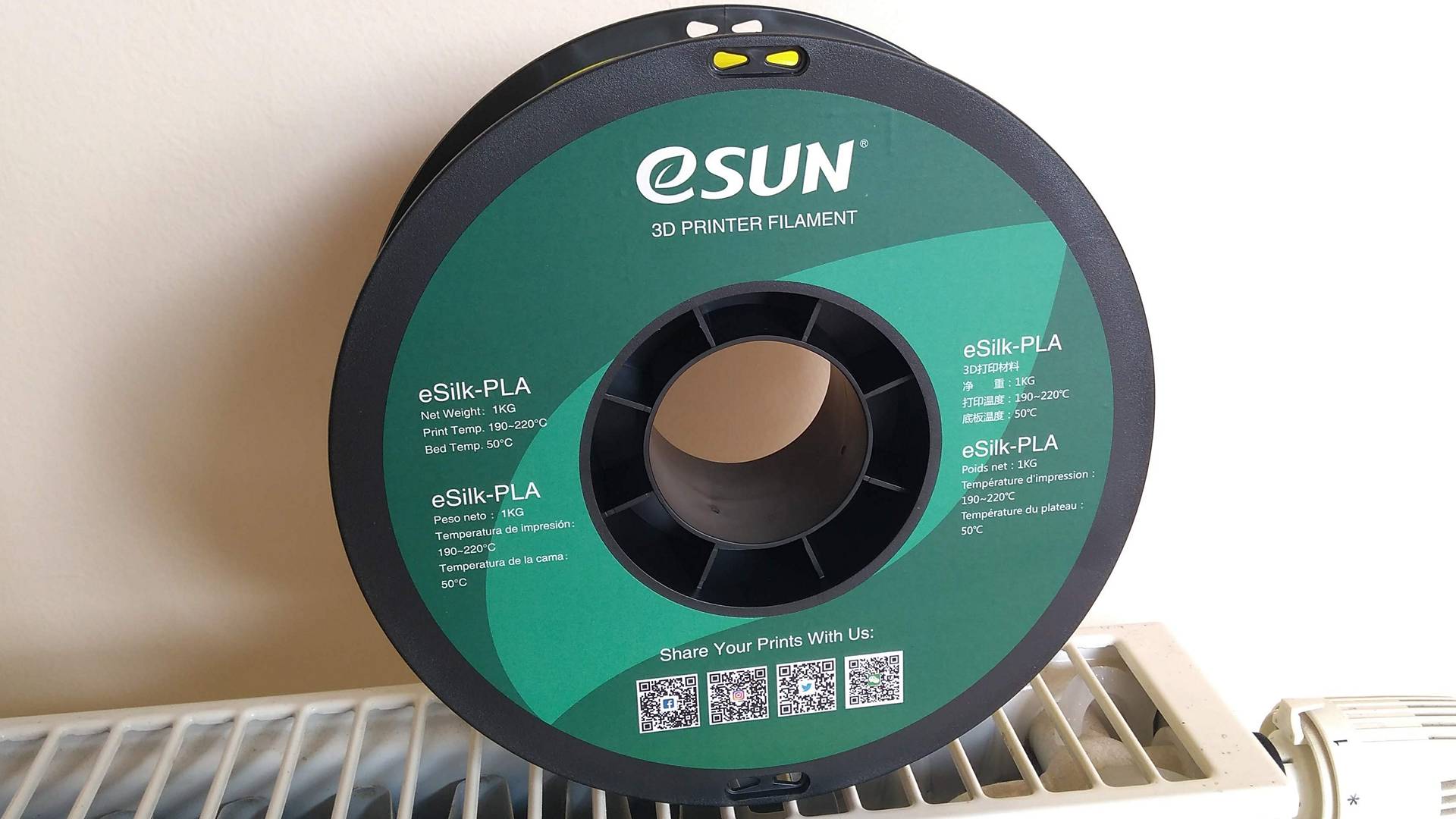

Images (spool, temperature tower, Benchy..):
esun Esun Esun https://youtu.be/L9tNhfxs9BU 190 220 210 Yellow 69.7 12.3 - - - - - x
