PLA / Gembird by Gembird

Tested PLA: Gembird (by Gembird). Color of the filament in test: Sky-blue. The experiment can be seen in this video: https://youtu.be/L9tNhfxs9BU

Official recommended printing temperatures:

Tmin Tmax
190 °C 220 °C
374 °F 428 °F

Test specimens are printed at 210°C (410°F)

Results of the mechanical testing

Testing method is described on this page. In most cases the break load is measured (in kg).

Test type Value Icon
Tensile (pulling) test 98.5 kg 8
Layer adhesion 44.6 kg
Impact test - I
Shear stress - m
Bending -
Torque (twist) -
Elasticity test -

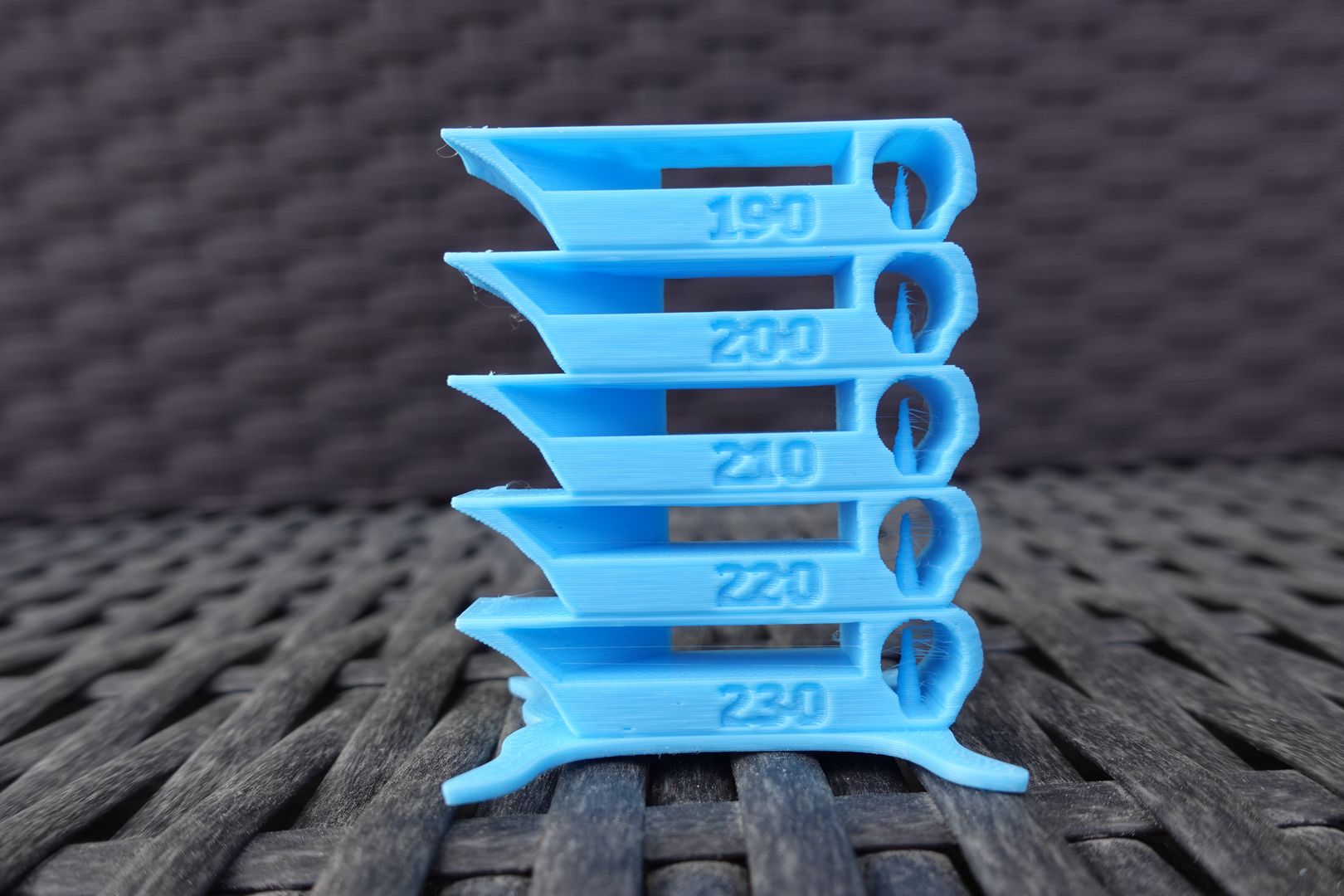

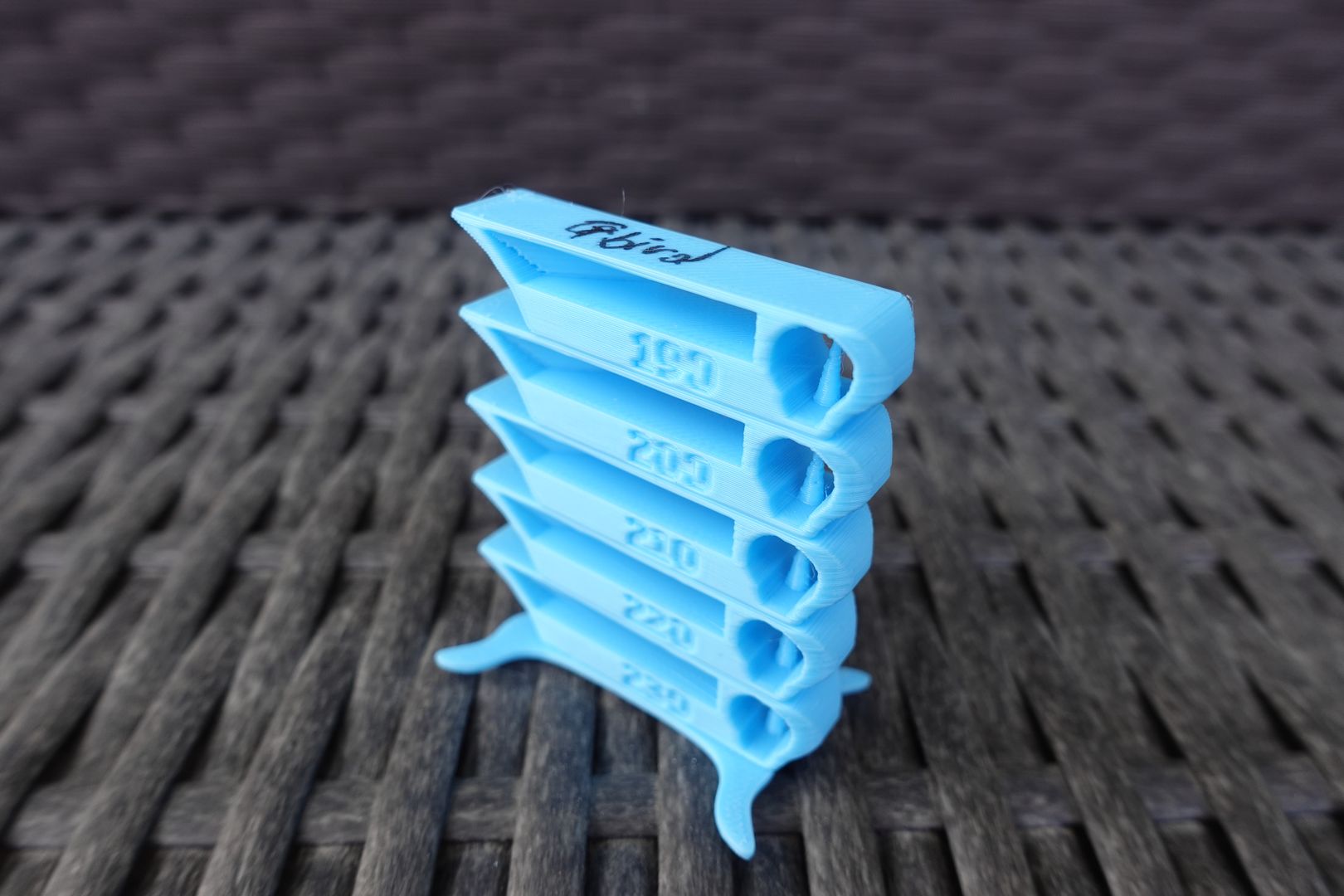

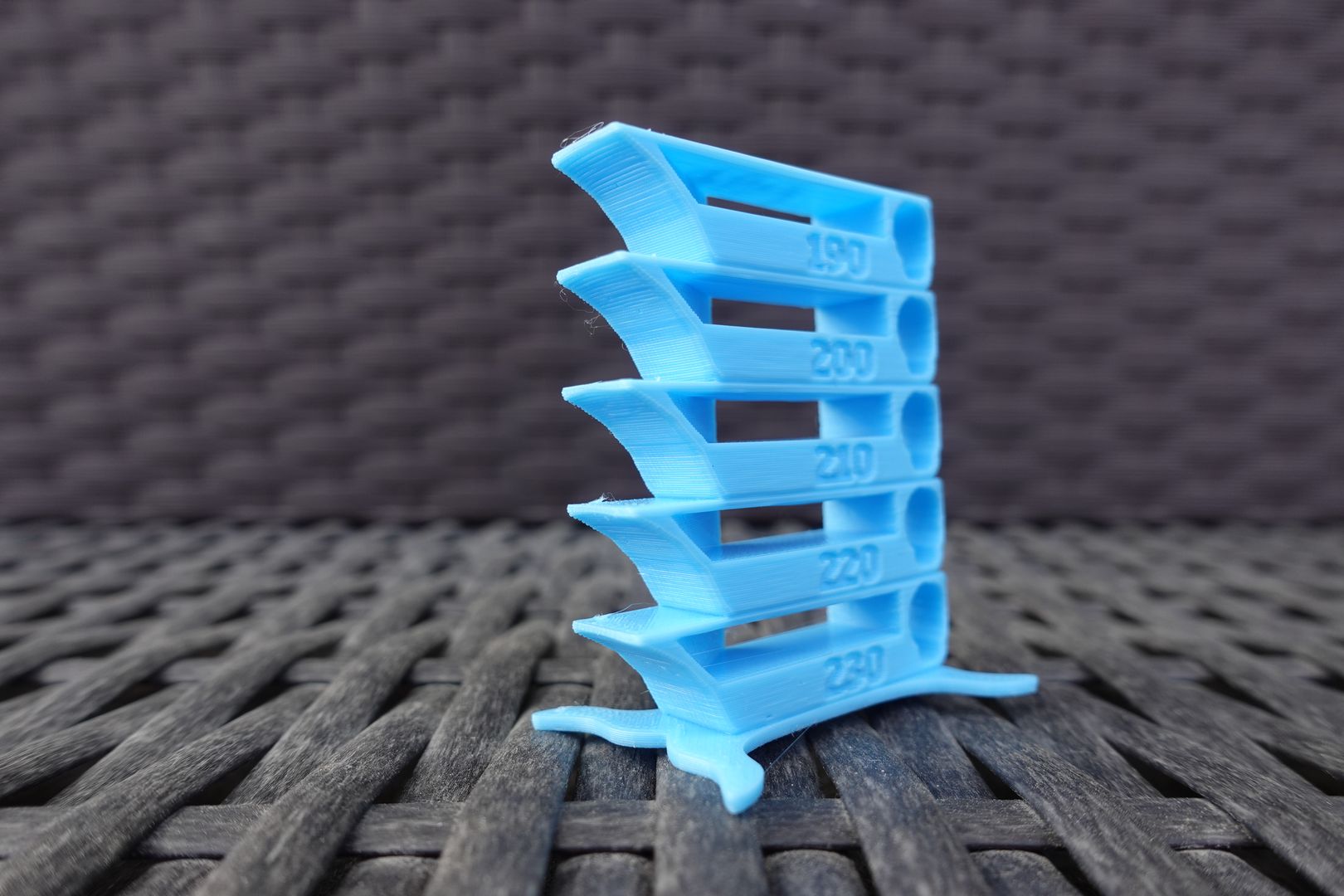

Images (spool, temperature tower, Benchy..):



gembird Gembird Gembird https://youtu.be/L9tNhfxs9BU 190 220 210 Sky-blue 98.5 44.6 - - - - - x
