Tested PLA: Overture (by Overture). Color of the filament in test: Black. The experiment can be seen in this video: https://youtu.be/L9tNhfxs9BU
Official recommended printing temperatures:
Tmin | Tmax |
190 °C | 220 °C |
374 °F | 428 °F |
Test specimens are printed at 210°C (410°F)
Testing method is described on this page. In most cases the break load is measured (in kg).
Test type | Value | Icon |
---|---|---|
Tensile (pulling) test | 77.2 kg | 8 |
Layer adhesion | 46.2 kg | |
Impact test | - | I |
Shear stress | - | m |
Bending | - | |
Torque (twist) | - | |
Elasticity test | - |

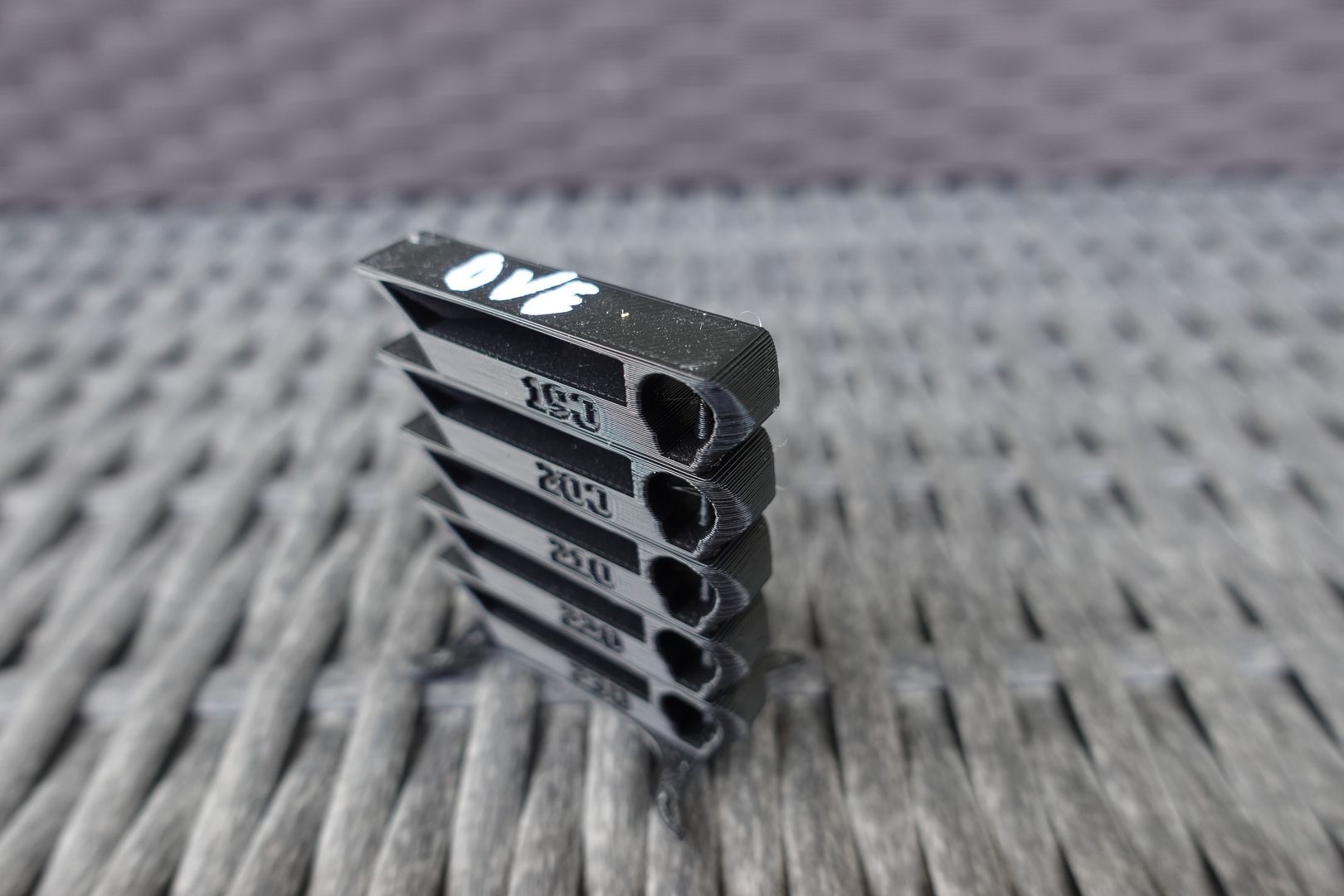

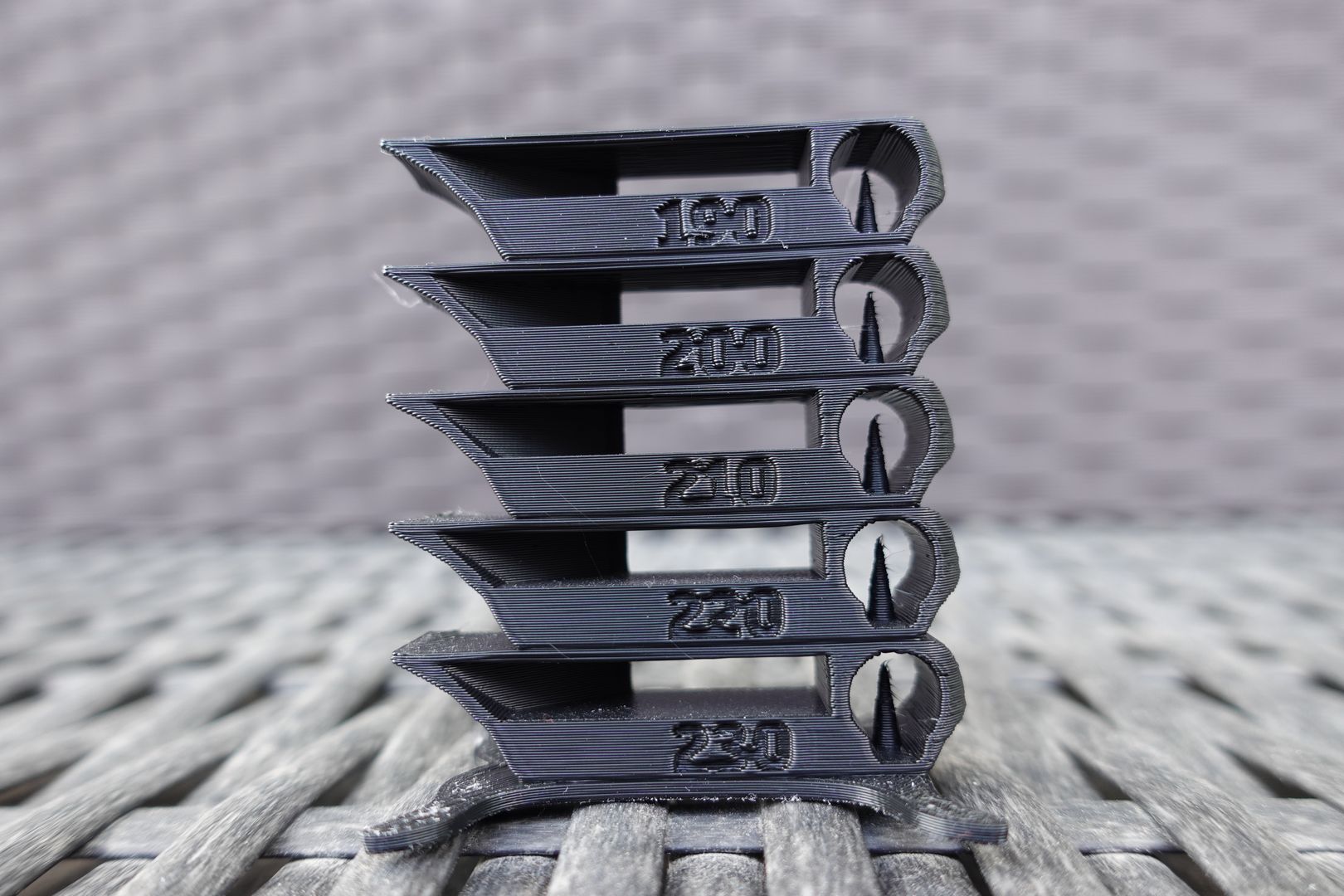

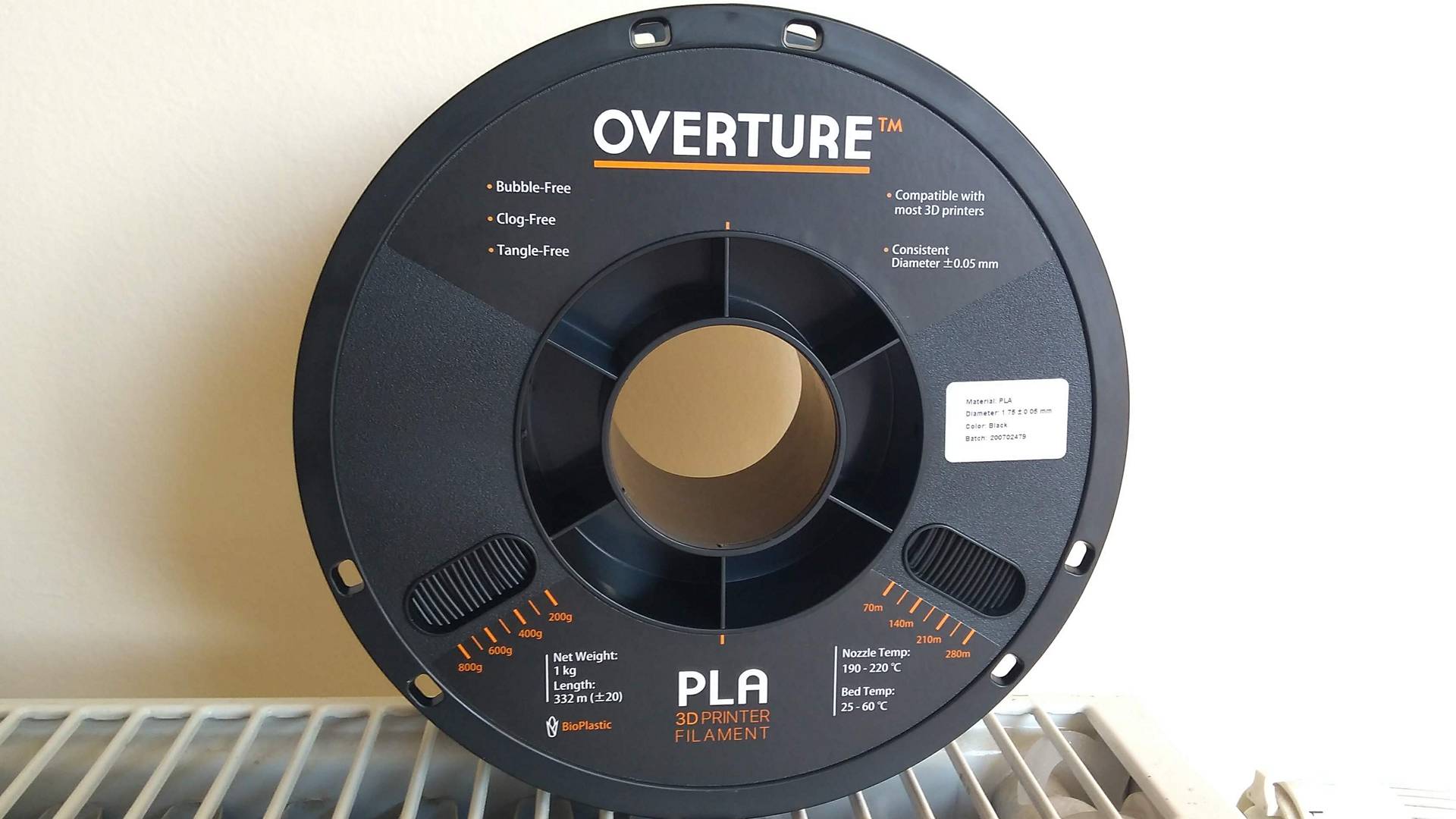

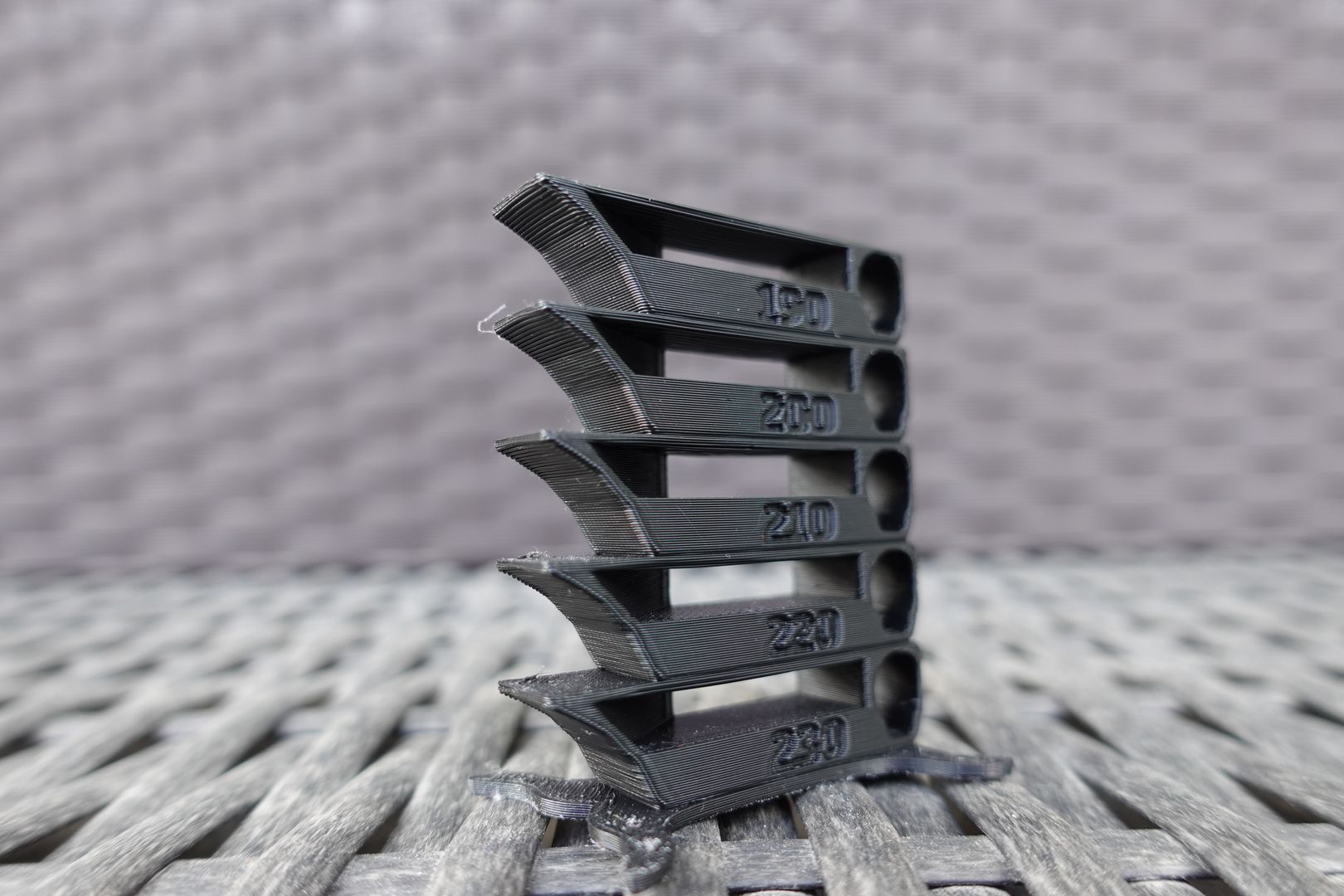

Images (spool, temperature tower, Benchy..):
