PLA / Prusa by Prusa

Tested PLA: Prusa (by Prusa). Color of the filament in test: Yellow. The experiment can be seen in this video: https://youtu.be/L9tNhfxs9BU

Official recommended printing temperatures:

Tmin Tmax
205 °C 225 °C
401 °F 437 °F

Test specimens are printed at 210°C (410°F)

Results of the mechanical testing

Testing method is described on this page. In most cases the break load is measured (in kg).

Test type Value Icon
Tensile (pulling) test 98 kg 8
Layer adhesion 56.6 kg
Impact test - I
Shear stress - m
Bending -
Torque (twist) -
Elasticity test -

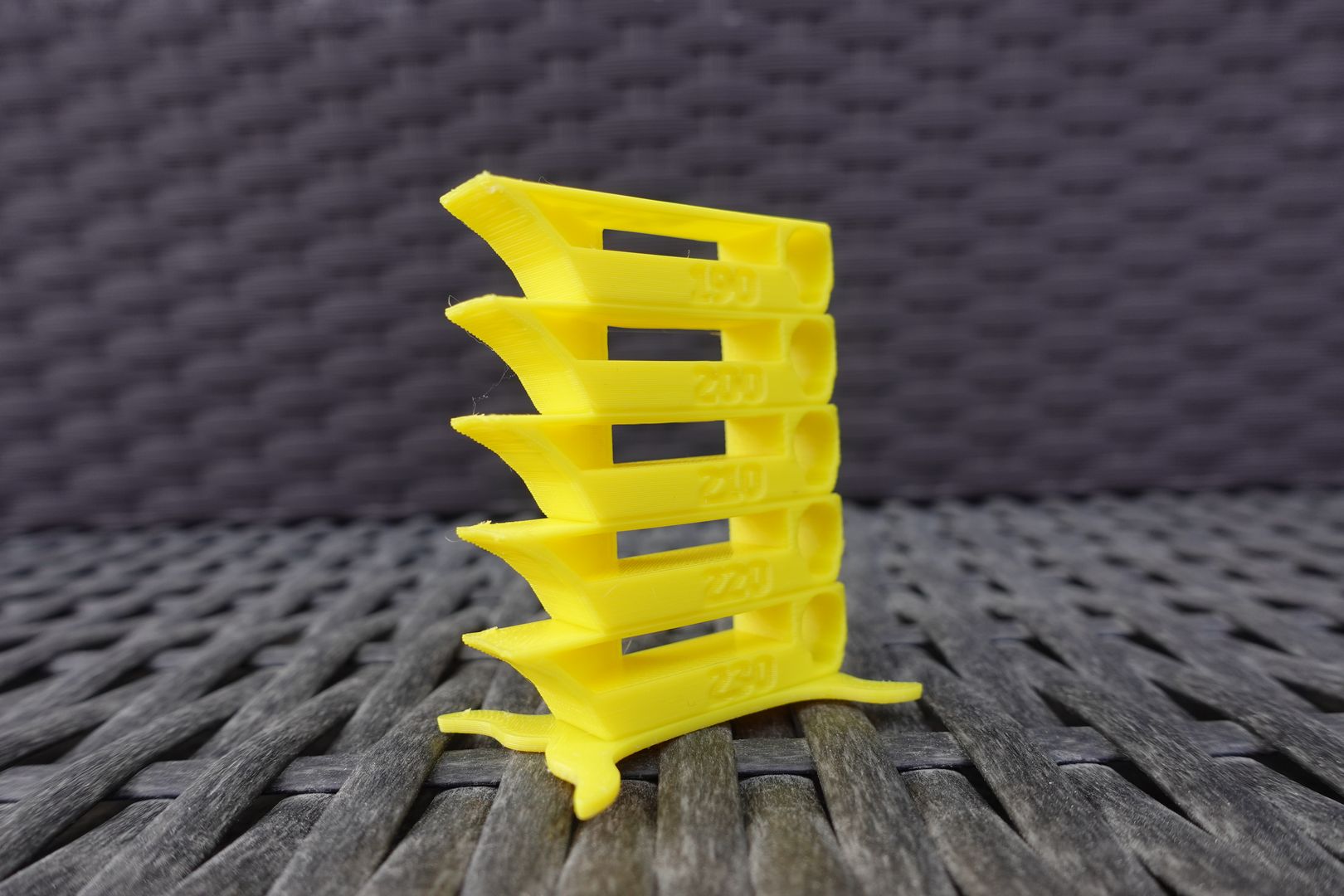

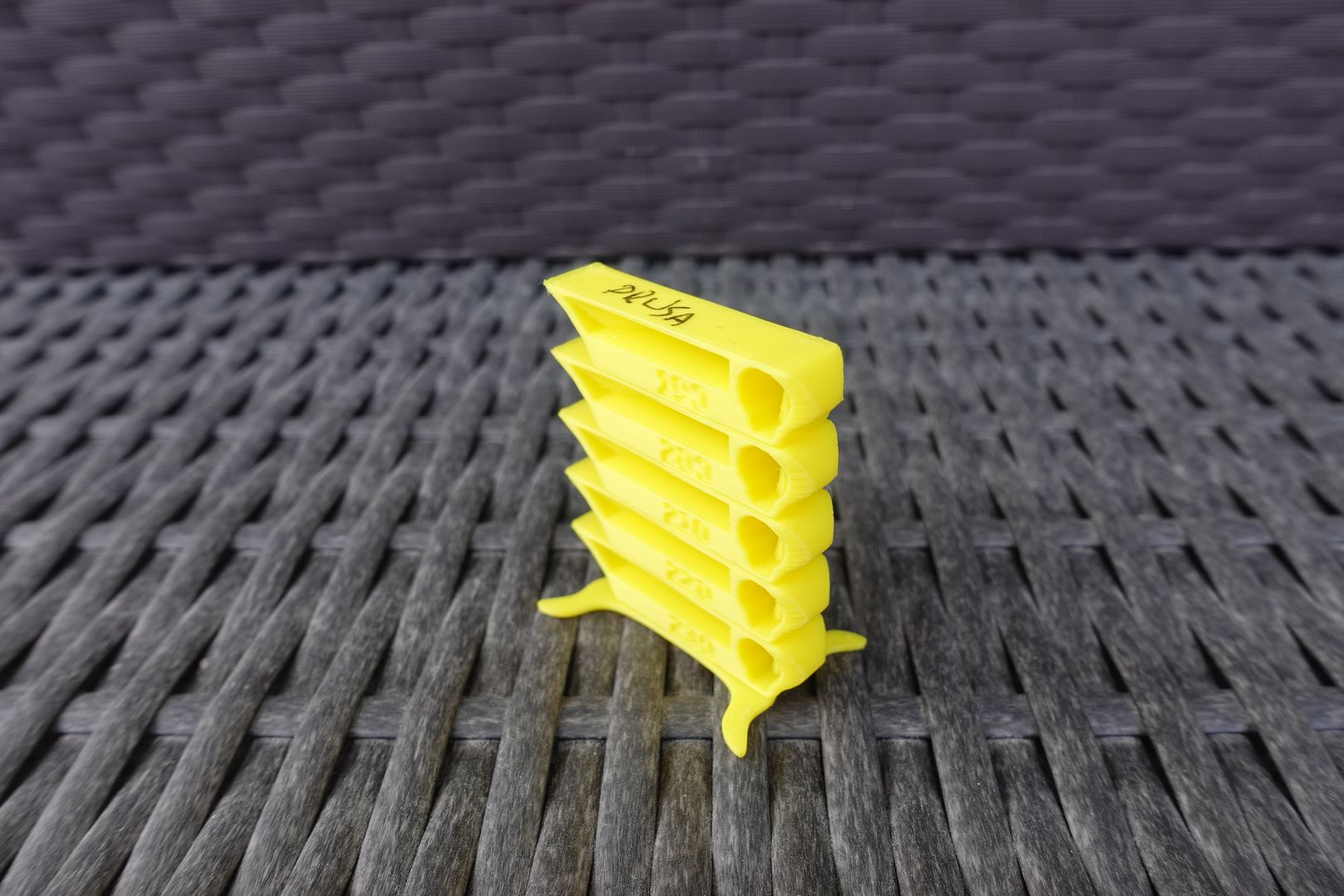

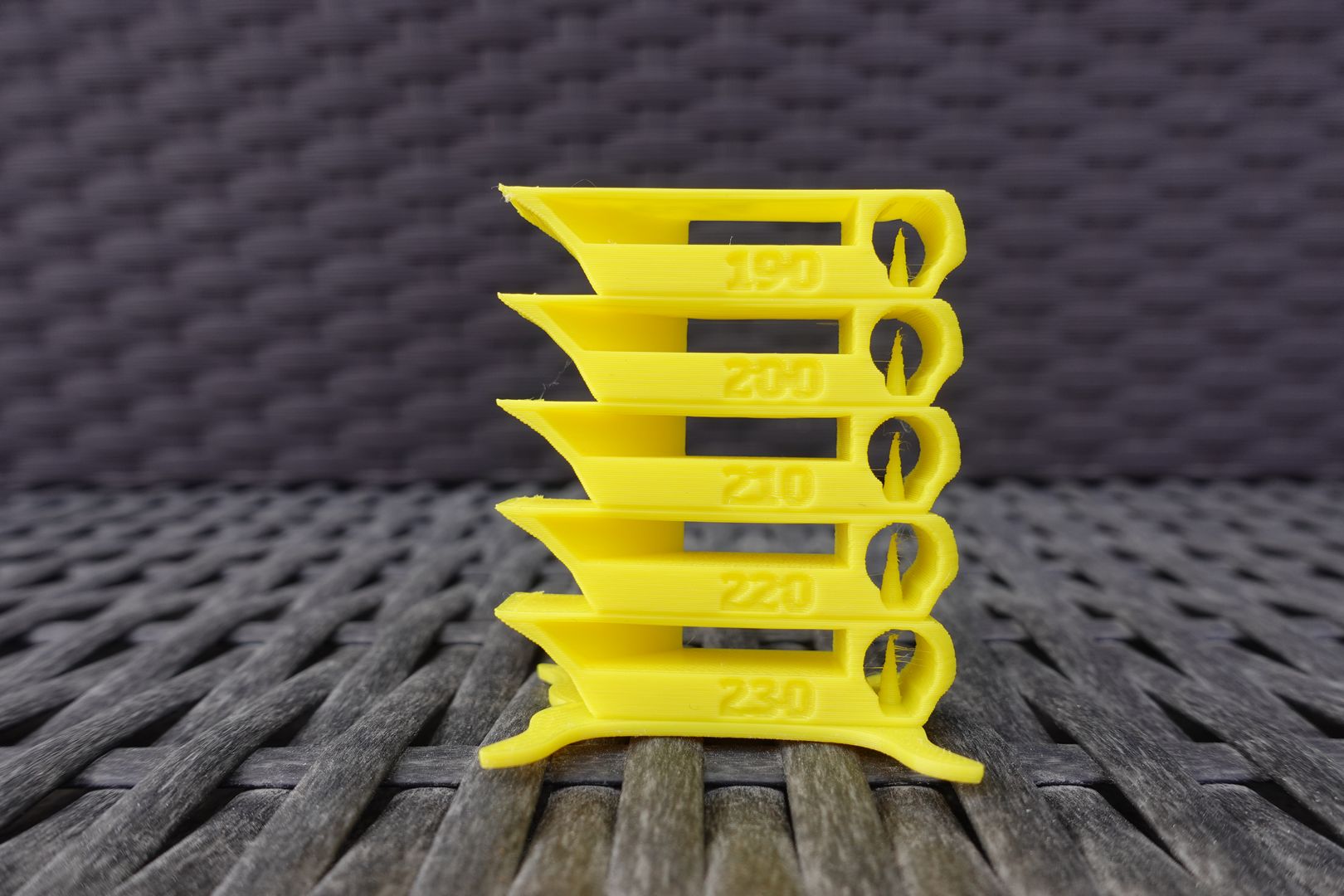

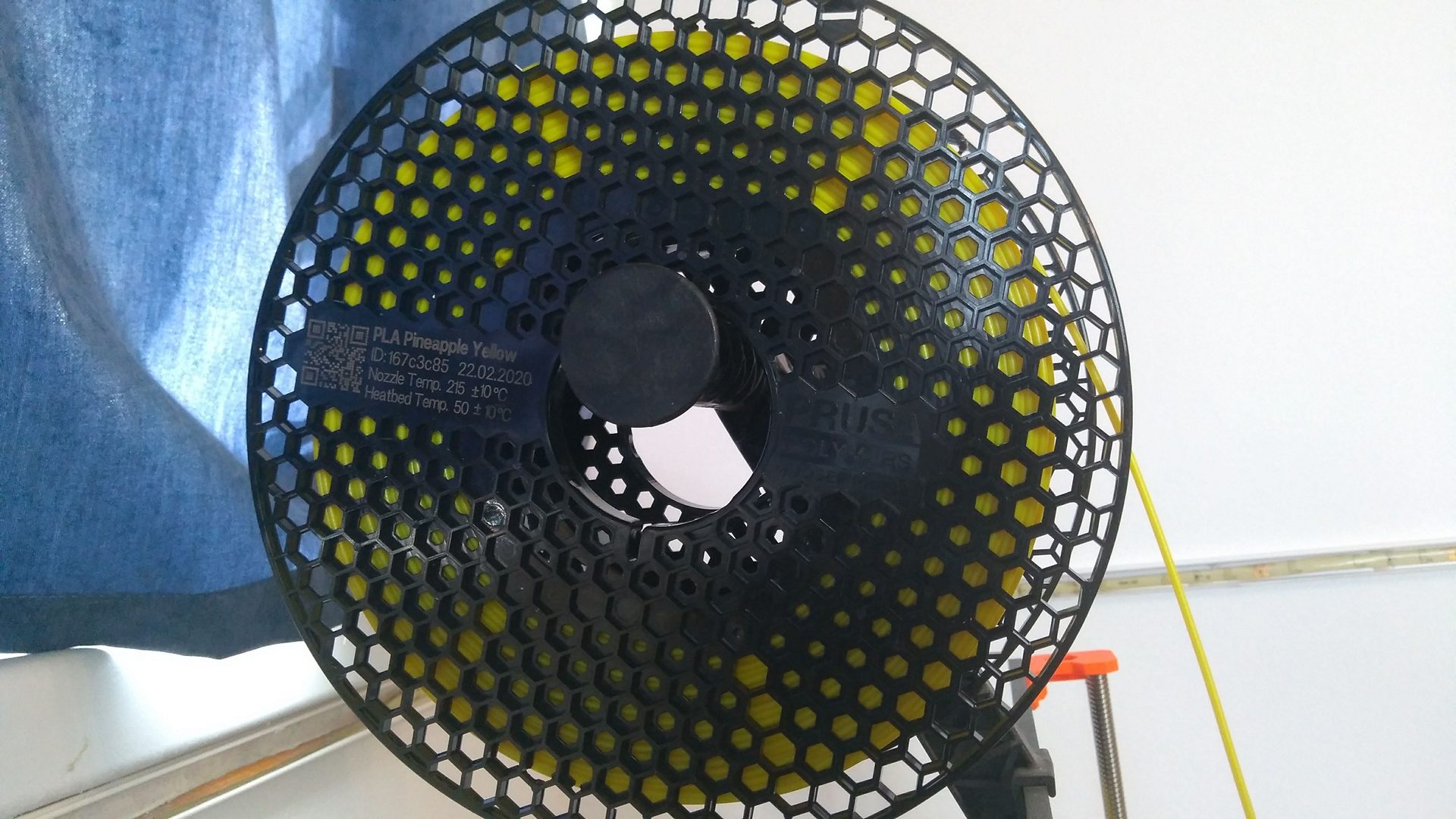

Images (spool, temperature tower, Benchy..):



prusa Prusa Prusa https://youtu.be/L9tNhfxs9BU 205 225 210 Yellow 98 56.6 - - - - - x
