Nothing, just another useless machine #Shorts

Title: Nothing, just another useless machine #Shorts. Watch on youtube: https://youtu.be/2KXhbxBJXL4

Tags: 3dprint, arduino, sequre, stepper motor, shorts,

Just another useless machine, combination of 3D printing, Arduino and closed loop stepper motor (by Sequre). Closed loop stepper motor will prevent skipping steps. All STL- and Arduino files can be downloaded below this text.

Used stepper motor:
https://sequremall.com/collections/stepper-motor-driver/products/stepper-motor-driver-price

Do you like my work? You could support me:
Paypal link: https://www.mytechfun.com/donation
Buy me a Coffee: https://www.buymeacoffee.com/mytechfun
Become a Patreon: https://www.patreon.com/mytechfun

Instructions:

Used hardware:

- SEQURE Closed loop stepper motor (2pcs). Closed loop = stepper will not skip steps

- 2020 alu extrusion for mounting (approx. 20 cm length)

- stepper motor holder (2pcs)

- spoon or arm (2pcs)

- M4 nut (I used square nut, but hex will work too), M4x12 bolt

- 12V power supply for stepper motors

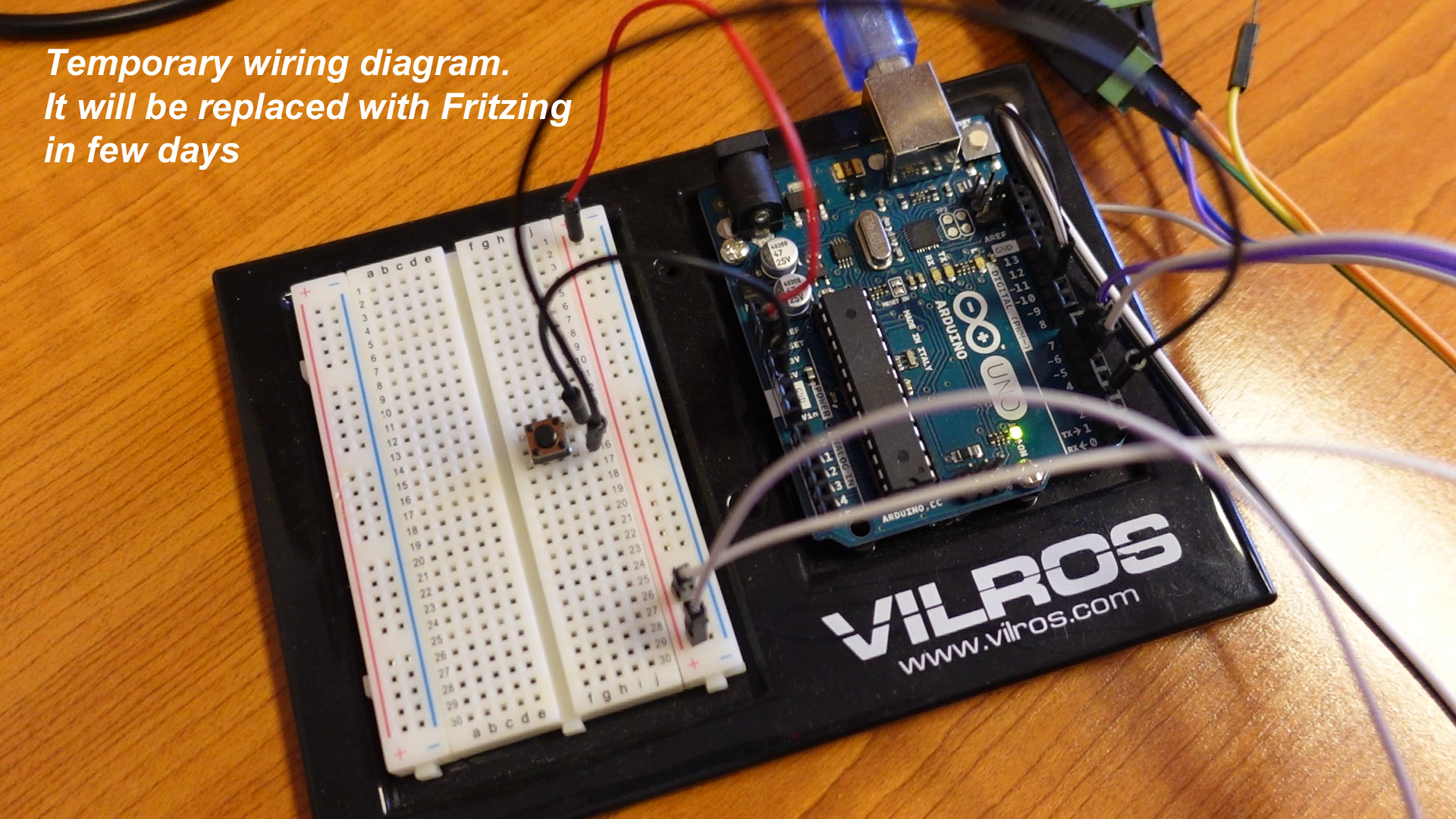

- Arduino uno, push button, jumper wires

- ball (3D printed, two half-balls and printed M8 set screw, printed horizontally)

After uploading the code, arms must be on the desk (zeroing), power the steppers and press the push button, insert the ball after arms are in start position as in video.

There are some numbers in code, that needs testing, like delay between drops or the speed and similar. Have fun.

Download files:
